Autex Acoustic Walls

Autex Acoustic Walls.

What Are

Autex Fabric Acoustic Walls?

Pacy & Wheatley Acoustics are Autex Fabric Acoustic Walls installation specialists, providing reverberation solutions for properties across the UK. Since our creation in 1995, we’ve built an expansive portfolio with projects ranging from shopping centres, football changing rooms, retail spaces and colleges. We’re very proud of the experience and knowledge we have gained in the last two decades, allowing us to recommend the best product for your space.

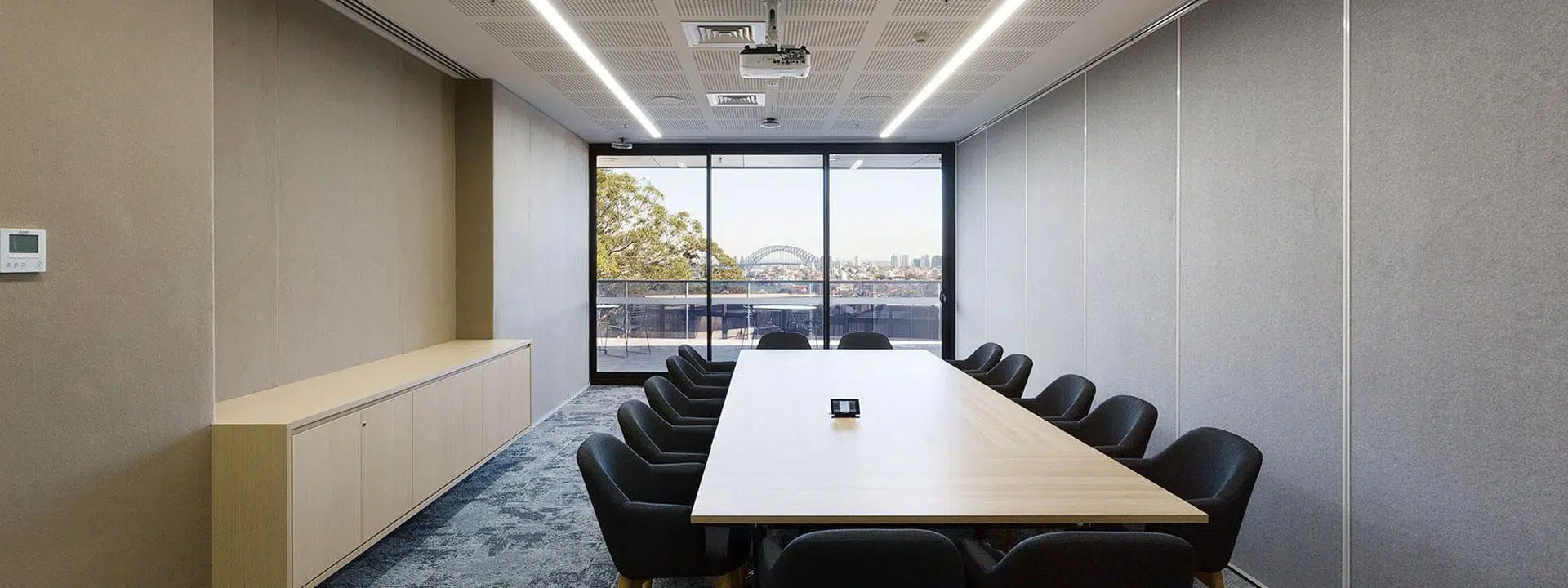

Fabric Acoustic Walls are cloth-wrapped panels designed to absorb sound and reduce echo and reverberation in busy spaces. The sound-absorbing boards are placed on walls and ceilings to enhance sound within a space whilst offering a decorative and functional purpose. Hard surfaces reflect sound energy, so a softer fabric reduces reverberation.

Project Examples

View Projects
  • Autex Empty Office
  • Autex Wall
  • Autex Colorful Brick Wall

Autex Fabric Acoustic Wall Range

The Autex range of Fabric Acoustic Walls is high-quality, versatile and modern, offering a stylish solution for every building. Fabric Acoustic Walls are popular in educational environments, such as schools and colleges, as they can be used as a display board.

Composition Fabric Walls are pin, staple and hook-and-look receptive, allowing the display of work and information. They’re available in various colours with limitless design and branding options. The Etch and Symphony range is suited to overlay directly on your chosen surface and is both ornamental and practical, perfect for livening up a neutral space. The Vertiface Fabric Walls are made of at least 90% recycled materials, making them a sustainable and environmentally friendly choice. They are made from 100% polyester so that they won’t stain, rot or fade.

If you’d like to learn more about our range of Autex Acoustic Fabric Wall products, complete the short contact form below to speak to a member of our team.

eBook Cover

    Download Our

    Flip eBrochure

    Please enter your name and email to access our company eBrochure.

    Please view our Privacy Policy for more information on how we use your data.

    Old Boy

    Dimensions & weight

    3mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.75-0.80 per ASTM C423. Alpha W 0,85 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.80-0.90 per ASTM C423. Alpha W 0.90-0,95 (class A) per ISO 354/ISO11654.

    Straight Up

    Dimensions & weight

    25 mm: 26 mm (1 1/32 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 2.78 kg/m² (9.11 oz/ft²).

    39 mm: 40 mm (1 37/64 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.12 kg/m² (13.51 oz/ft²).

    Installation

    25 mm-39 mm: Can be mounted on walls or ceilings. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    93% per ASTM E147-98A.

    Fire safety classification

    25 mm-39 mm: Class A per ASTM E84, A2 s1d0 per ISO EN-13501-1:2018

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    25 mm-39 mm: 0 g/l (0,00 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.85-0.90 per ASTM C423. Alpha W 0.85 (class B)-0.95 (class A) per ISO 354/ISO11654.

    39 mm: NRC 0.85-0.90 per ASTM C423. Alpha W 0,90 – 0.95 (class A) per ISO 354/ISO11654.

    Stone Greyhound

    Dimensions & weight

    3 mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.45-0.60 per ASTM C423. Alpha W 0,50 (class D)-0,55 (class D) per ISO 354/ISO11654.

    39 mm: NRC 0.50-0.60 per ASTM C423. Alpha W 0,55 (class D) per ISO 354/ISO11654.

    Silk White

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    90,0% per ASTM E147-98A.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    3 mm: NRC 0.30 per ASTM C423, Alpha W 0.35 (class D).

    25 mm: NRC 0.81-0.85 per ASTM C423. Alpha W 0,85 (class B)-0,90 (class A) per ISO 354/ISO11654.

    39 mm: NRC 0.90 per ASTM C423. Alpha W 0,95 – 1,00 (class A) per ISO 354/ISO11654.

    Silk Metallic Gold

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.75-0.85 enl. ASTM C423. Alpha W 0.70 (class C)-0.85 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.80-0.85 per ASTM C423. Alpha W 0.85 (class B) – 0.90 (class A) enl. ISO 354/ISO11654

    Secern

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    3 mm: NRC 0.30 per ASTM C423.

    25 mm: NRC 0.75-0.80 per ASTM C423. Alpha W 0,80 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.85-0.90 per ASTM C423. Alpha W 0,95 (class A) per ISO 354/ISO11654.

    Sahara

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    3 mm: NRC 0.30 per ASTM C423. Alpha W 0.35 (class D)

    25 mm: NRC 0.70-0.80 per ASTM C423. Alpha W 0,75 (class C)-0,90 (class A) per ISO 354/ISO11654.

    39 mm: NRC 0.90-0.95 per ASTM C423. Alpha W 0,95 – 1,00 (class A) per ISO 354/ISO11654.

    New England

    Dimensions & weight

    3 mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E147-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.74 per ASTM C423. Alpha W 0,80 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.75-80 per ASTM C423. Alpha W 0,80–85,00 (class B) per ISO 354/ISO11654.

    Marble Hades

    Dimensions & weight

    3 mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.45-0.60 per ASTM C423. Alpha W 0,50 (class D)-0,55 (class D) per ISO 354/ISO11654.

    39 mm: NRC 0.50-0.60 per ASTM C423. Alpha W 0,55 (class D) per ISO 354/ISO11654.

      Free Sample for... Autex Acoustic Walls

      Fields marked with an * are required.

      For more details on how we handle your data, please view our Privacy Policy

        Apply For... Experienced Site Foreman

        Requirements

        Pacy & Wheatley Acoustics, one of the UK’s leading providers & installers of interior acoustic solutions, is looking for experienced Acoustic Installers & a Site Foreman to help deliver multiple projects in the South of England (London area) candidates location Yorkshire/ London.

        Specifications

        • Experience of managing & directing a team of installers, preferable.
        • Experience in Reporting systems planning and dealing with Clients representatives.
        • Experience & knowledge in acoustic installations (acoustic panels & spray applied render) not essential but must be willing work and train on products.
        • Suitable skills include drylining, tape & jointing, plastering, plaster spraying and high specification decoration finishes.
        • CSCS, SSTS & IPAF cards required. (if some not available training offered)
        • General work is Monday – Friday (10-hour day)
        • Suitable applicants will be rewarded with high rates on a self-employed basis/employed.
        • Must be willing to travel and lodge.

        Fields marked with an * are required.

        For more details on how we handle your data, please view our Privacy Policy

          Apply For... Acoustic Ceiling Installers

          Requirements

          Pacy & Wheatley Acoustics are looking for Experienced Operative/teams aswell as Operatives with no experience to assist installation of our Specialist sprayed seamless Acoustic ceilings.

          Experienced Operatives in application/site management of similar products in this area of sprayed acoustic systems are welcome and possible further opportunities to assist in development within the business.

          Non Experienced Operatives is all about desire and commitment to hard work and learning, Hungry Individuals with the will to work in a team and have the mentality to grow and be trained in our systems.

          Should have basic construction skills and desire to move forward and be part of a growing side of the Pacy & Wheatley Group long term.

          We are based in Doncaster however move around the country continually so location not that important however must be willing to travel and lodge.

          We are installers of Rockfon Mono Acoustic/Bospray a single sprayed coating to structural soffits and the Fade product as well as other products in our brand.

          Fields marked with an * are required.

          For more details on how we handle your data, please view our Privacy Policy

            Contact me regarding... Autex Acoustic Walls

            Fields marked with an * are required.

            For more details on how we handle your data, please view our Privacy Policy

              Access Our Downloads

              Fields marked with an * are required.

              For more details on how we handle your data, please view our Privacy Policy

                Contact Us Today

                Fields marked with an * are required.

                For more details on how we handle your data, please view our Privacy Policy
