Rockfon Acoustic Plaster London

The Project

Pacy & Wheatley were appointed by Kingsley Napley to install a Rockfon Acoustic plaster system at their London based offices.
Over six years ago, law firm Kingsley Napley considered consolidating its three Clerkenwell offices into a single building. Once the decision was made to move, Kingsley Napley collaborated with design specialists KKS Savills and Overbury fit out and refurbishment, along with BPC interiors as sub-contractor, to create an environment which would help enable the company to flourish and meet its aspirations for recruitment, retention and growth. Fast-forward to 2021 and the firm occupies six floors at Twenty Bonhill, Shoreditch.

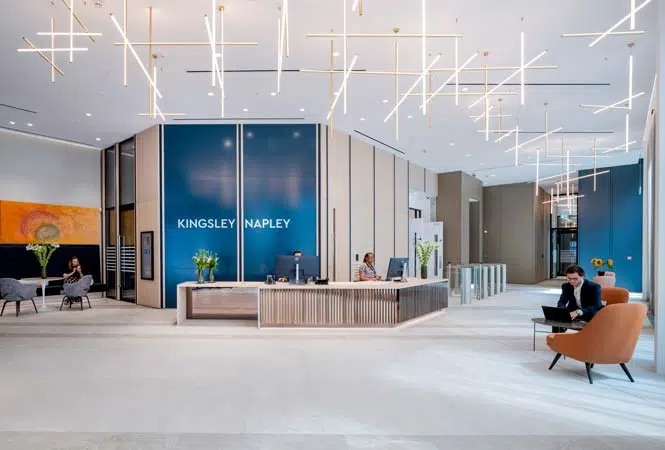

Within the large reception areas Acoustical comfort was identified as an issue due to the size and the hard surfaces within the space. They required a system to control the reverberation within the space creating a seamless smooth appearance which incorporates their services and creative lighting design with ease whilst not detracting from the prestigious and exacting project.

The Solution

Working with BPC Interiors, KKS Savills Associate Director and Senior Designer Paul Butterworth, “Rockfon Mono was chosen for its appearance but also for its ability to mitigate against the unwanted sound generated by hard surfaces. It delivered clean lines while successfully hiding the services above. We are so pleased to have discovered this beautiful, fabulous product!”

The project was completed on time and to budget for the client.

Testimonial

“We managed the project and instructed Pacy & Wheatley to install Rockfon® Mono® Acoustic throughout the large double-height reception. The Installation went very well and an impressive smooth finish was achieved that :- “even with sunlight or interior lighting shining across it looks really great.” - BPC Interiors Senior Construction Manager, Stuart Dowling

eBook Cover

    Download Our

    Flip eBrochure

    Please enter your name and email to access our company eBrochure.

    Please view our Privacy Policy for more information on how we use your data.

    Old Boy

    Dimensions & weight

    3mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.75-0.80 per ASTM C423. Alpha W 0,85 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.80-0.90 per ASTM C423. Alpha W 0.90-0,95 (class A) per ISO 354/ISO11654.

    Straight Up

    Dimensions & weight

    25 mm: 26 mm (1 1/32 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 2.78 kg/m² (9.11 oz/ft²).

    39 mm: 40 mm (1 37/64 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.12 kg/m² (13.51 oz/ft²).

    Installation

    25 mm-39 mm: Can be mounted on walls or ceilings. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    93% per ASTM E147-98A.

    Fire safety classification

    25 mm-39 mm: Class A per ASTM E84, A2 s1d0 per ISO EN-13501-1:2018

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    25 mm-39 mm: 0 g/l (0,00 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.85-0.90 per ASTM C423. Alpha W 0.85 (class B)-0.95 (class A) per ISO 354/ISO11654.

    39 mm: NRC 0.85-0.90 per ASTM C423. Alpha W 0,90 – 0.95 (class A) per ISO 354/ISO11654.

    Stone Greyhound

    Dimensions & weight

    3 mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.45-0.60 per ASTM C423. Alpha W 0,50 (class D)-0,55 (class D) per ISO 354/ISO11654.

    39 mm: NRC 0.50-0.60 per ASTM C423. Alpha W 0,55 (class D) per ISO 354/ISO11654.

    Silk White

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    90,0% per ASTM E147-98A.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    3 mm: NRC 0.30 per ASTM C423, Alpha W 0.35 (class D).

    25 mm: NRC 0.81-0.85 per ASTM C423. Alpha W 0,85 (class B)-0,90 (class A) per ISO 354/ISO11654.

    39 mm: NRC 0.90 per ASTM C423. Alpha W 0,95 – 1,00 (class A) per ISO 354/ISO11654.

    Silk Metallic Gold

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.75-0.85 enl. ASTM C423. Alpha W 0.70 (class C)-0.85 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.80-0.85 per ASTM C423. Alpha W 0.85 (class B) – 0.90 (class A) enl. ISO 354/ISO11654

    Secern

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    3 mm: NRC 0.30 per ASTM C423.

    25 mm: NRC 0.75-0.80 per ASTM C423. Alpha W 0,80 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.85-0.90 per ASTM C423. Alpha W 0,95 (class A) per ISO 354/ISO11654.

    Sahara

    Dimensions & weight

    3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    3 mm: NRC 0.30 per ASTM C423. Alpha W 0.35 (class D)

    25 mm: NRC 0.70-0.80 per ASTM C423. Alpha W 0,75 (class C)-0,90 (class A) per ISO 354/ISO11654.

    39 mm: NRC 0.90-0.95 per ASTM C423. Alpha W 0,95 – 1,00 (class A) per ISO 354/ISO11654.

    New England

    Dimensions & weight

    3 mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E147-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Color selection

    Can be tinted in the entire NCS, RAL, Sherwin Williams or Benjamin Moore color scale.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.74 per ASTM C423. Alpha W 0,80 (class B) per ISO 354/ISO11654.

    39 mm: NRC 0.75-80 per ASTM C423. Alpha W 0,80–85,00 (class B) per ISO 354/ISO11654.

    Marble Hades

    Dimensions & weight

    3 mm: 3 mm (1/8 inch) thick. Weight (dry) 0.7 kg/m² (2,2 oz/ft²).

    25 mm: 28 mm (1,1 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 3.55 kg/m² (11,6 oz/ft²).

    39 mm: 42 mm (1,65 inch) total construction height. Weight (dry, excl. adhesive/mech. fasteners) 4.7 kg/m² (15,4 oz/ft²).

    Installation

    3 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. On most absorbent surfaces, primer may sometimes be needed.

    25 mm-39 mm: Can be mounted on walls or ceilings. On flat or vaulted surfaces. Can be mounted with no gaps on existing ceilings or wall surfaces, suspended mounted on plasterboard or suspended directly from a track system.

    Light reflectance

    3 mm-39 mm: 90,0% per ASTM E1477-98a.

    Fire safety classification

    3 mm-39 mm: Class A per ASTM E84; B s1d0 per ISO EN 13823.

    Cleaning and repair

    Can be vacuumed. Spots can be removed with water and sponge. Damaged surfaces can be repaired.

    Environment

    3 mm-39 mm: 4 g/l (0,03 lbs/gal) VOC (emissions) per ASTM D3960, LEED.

    Climate

    Installation temperatures should be between 15 °C and 32 °C (60 °F and 90 °F) with humidity that does not exceed 70%. Tested for mold growth per ASTM D3273.

    Sound absorption

    25 mm: NRC 0.45-0.60 per ASTM C423. Alpha W 0,50 (class D)-0,55 (class D) per ISO 354/ISO11654.

    39 mm: NRC 0.50-0.60 per ASTM C423. Alpha W 0,55 (class D) per ISO 354/ISO11654.

      Free Sample for... Rockfon Acoustic Plaster London

      Fields marked with an * are required.

      For more details on how we handle your data, please view our Privacy Policy

        Apply For... Experienced Site Foreman

        Requirements

        Pacy & Wheatley Acoustics, one of the UK’s leading providers & installers of interior acoustic solutions, is looking for experienced Acoustic Installers & a Site Foreman to help deliver multiple projects in the South of England (London area) candidates location Yorkshire/ London.

        Specifications

        • Experience of managing & directing a team of installers, preferable.
        • Experience in Reporting systems planning and dealing with Clients representatives.
        • Experience & knowledge in acoustic installations (acoustic panels & spray applied render) not essential but must be willing work and train on products.
        • Suitable skills include drylining, tape & jointing, plastering, plaster spraying and high specification decoration finishes.
        • CSCS, SSTS & IPAF cards required. (if some not available training offered)
        • General work is Monday – Friday (10-hour day)
        • Suitable applicants will be rewarded with high rates on a self-employed basis/employed.
        • Must be willing to travel and lodge.

        Fields marked with an * are required.

        For more details on how we handle your data, please view our Privacy Policy

          Apply For... Acoustic Ceiling Installers

          Requirements

          Pacy & Wheatley Acoustics are looking for Experienced Operative/teams aswell as Operatives with no experience to assist installation of our Specialist sprayed seamless Acoustic ceilings.

          Experienced Operatives in application/site management of similar products in this area of sprayed acoustic systems are welcome and possible further opportunities to assist in development within the business.

          Non Experienced Operatives is all about desire and commitment to hard work and learning, Hungry Individuals with the will to work in a team and have the mentality to grow and be trained in our systems.

          Should have basic construction skills and desire to move forward and be part of a growing side of the Pacy & Wheatley Group long term.

          We are based in Doncaster however move around the country continually so location not that important however must be willing to travel and lodge.

          We are installers of Rockfon Mono Acoustic/Bospray a single sprayed coating to structural soffits and the Fade product as well as other products in our brand.

          Fields marked with an * are required.

          For more details on how we handle your data, please view our Privacy Policy

            Contact me regarding... Rockfon Acoustic Plaster London

            Fields marked with an * are required.

            For more details on how we handle your data, please view our Privacy Policy

              Access Our Downloads

              Fields marked with an * are required.

              For more details on how we handle your data, please view our Privacy Policy

                Contact Us Today

                Fields marked with an * are required.

                For more details on how we handle your data, please view our Privacy Policy
